Telvonic SYSTEMSWi-Fi 6, 6E & 7 production test lines. Eight DUTs at a time.
Turnkey calibration and verification for routers, mesh nodes, access points and extenders — shield boxes, RF tester, fixtures and Line Manager delivered as one working station.
Shield boxes per calibration station, tested in parallel from one 8-port RF tester.
The line, in numbers.

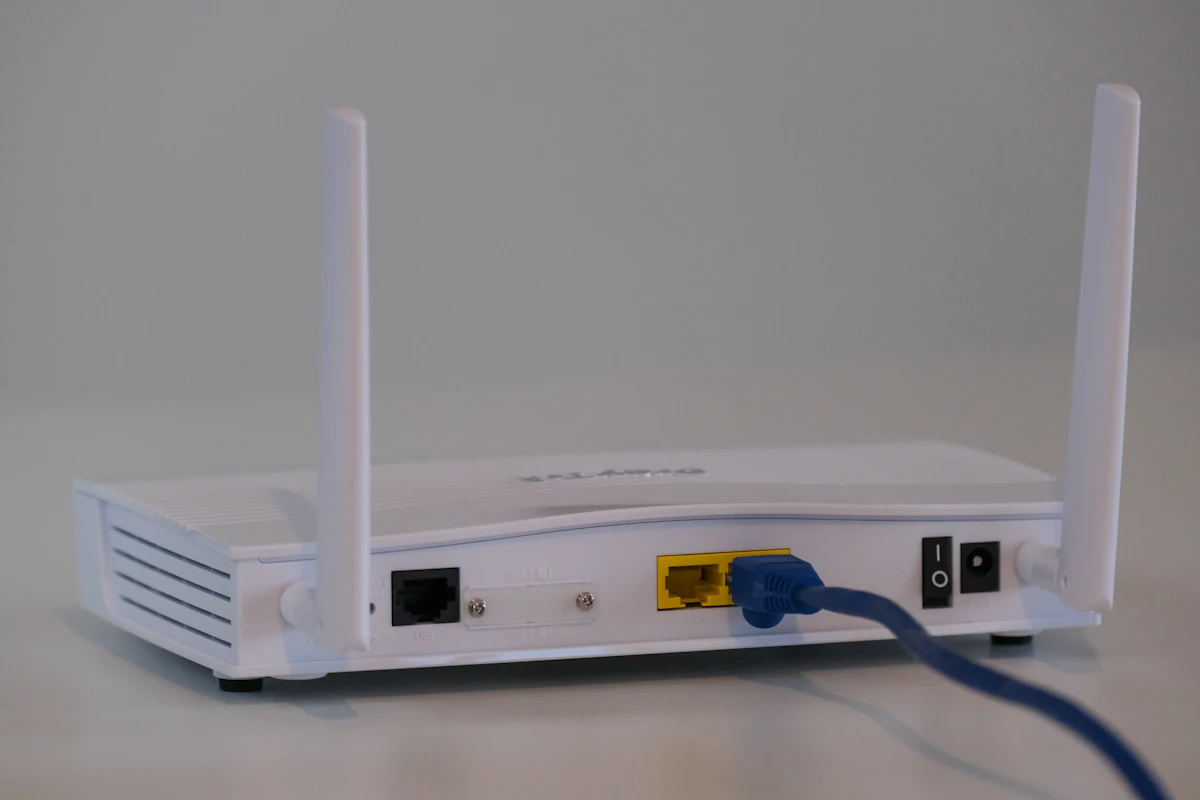

Routers · mesh · APsWhat every unit goes through
- TX power, frequency & IQ calibration per chain
- EVM, spectral mask, RX sensitivity, PER
- Throughput and functional checks
Why this is hard to get right in-house.
Going deeper: Wi-Fi 7 production testing: what changes on the line

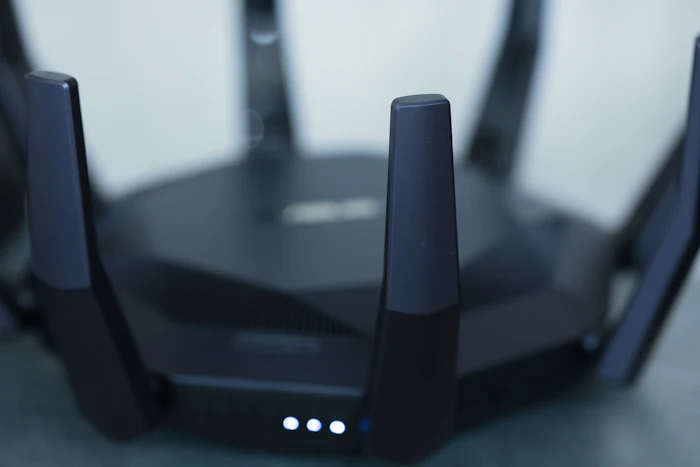

More RF paths per unit
Tri-band 4×4 devices mean up to 12 RF chains to calibrate — cycle time explodes without parallel testing and smart RF switching.
Tighter RF limits
4096-QAM and 320 MHz channels demand low-EVM testers, stable path-loss calibration and well-isolated shield boxes.
Chipset-specific flows
Every chipset vendor has its own calibration tools. Integrating them cleanly with your MES is where in-house lines struggle.
Station by station.
A typical configuration. We split and parallelise stations to hit your units-per-hour target.
RF calibration
TX power, frequency and IQ calibration per band and chain in RF shield boxes — eight DUTs per station.
RF verification
EVM, spectral mask, RX sensitivity and PER against your limits, with golden-unit correlation.
Throughput & functional
WAN-to-LAN and wireless throughput, Ethernet ports, USB, LEDs and buttons.
Final QC
Firmware and config check, MAC / serial verification, label print and MES upload.
What sets the station's output? The slowest step.
Eight shield boxes test in parallel, but one robot serves them all. Try your own RF test time
ST-01 · Wi-Fi calibration station
- Parallel DUTs
- 8 RF shield boxes (manual or pneumatic)
- Standards
- 802.11a/b/g/n/ac/ax/be
- Bands
- 2.4 / 5 / 6 GHz
- Channels
- 20 – 320 MHz
- MIMO
- Up to 4×4 per band
- Instruments
- 8-port RF tester, calibrated RF cable set, switch, station PC
- Also
- Bluetooth / BLE, Zigbee, OTA antenna check
- Software
- Line Manager · MES upload · yield dashboard
Questions engineers ask us
Which Wi-Fi standards can the line test?
802.11a/b/g/n/ac/ax/be — Wi-Fi 4 through Wi-Fi 7 — across 2.4, 5 and 6 GHz, including 160 and 320 MHz channels.
Do you support chipset-specific calibration?
Yes. Calibration flows are built around your chipset vendor's manufacturing tools and run inside Line Manager, so operators use one scan-and-test flow.
How many devices are tested in parallel?
The standard station holds eight DUTs in eight shield boxes driven by one 8-port RF tester. We size the number of stations to your cycle-time target.
Planning a Wi-Fi 7 launch? We'll size the line.
Send the chipset, band configuration and target volume.
